20″ Concaver CVR7 | Hybrid Forged Y-Spoke | Deep Concave Audi Specialist

Description

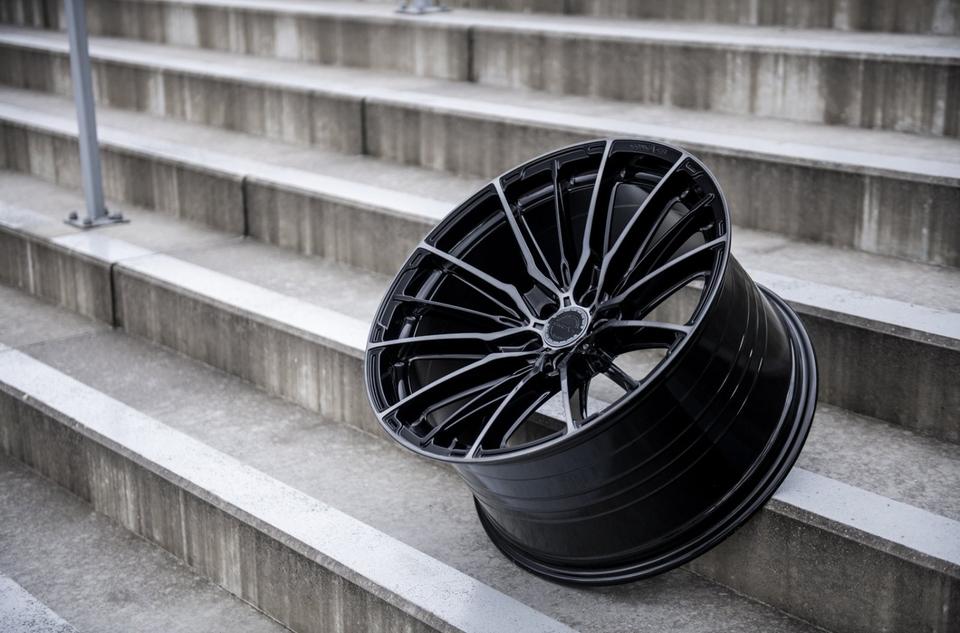

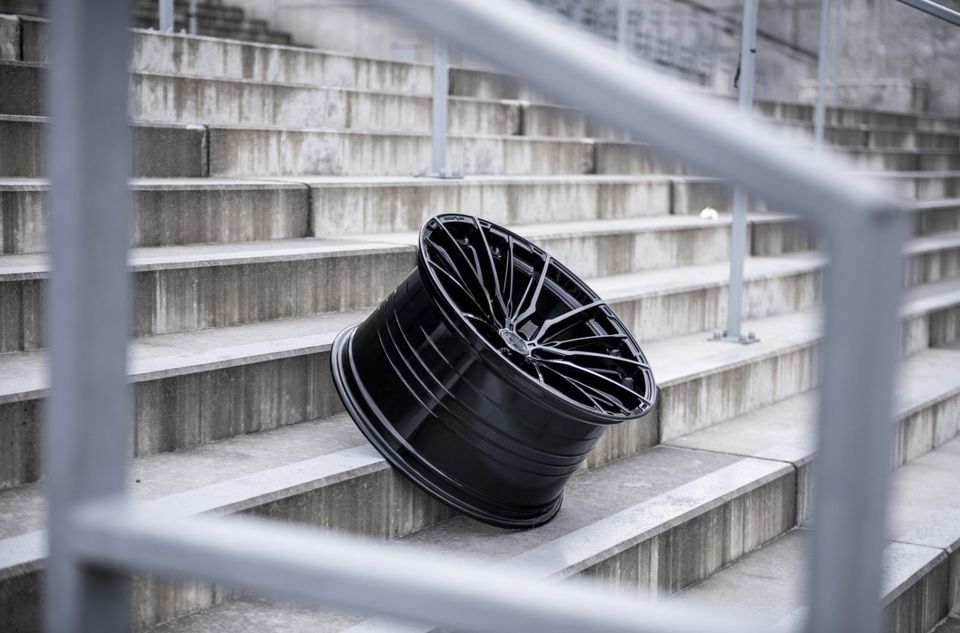

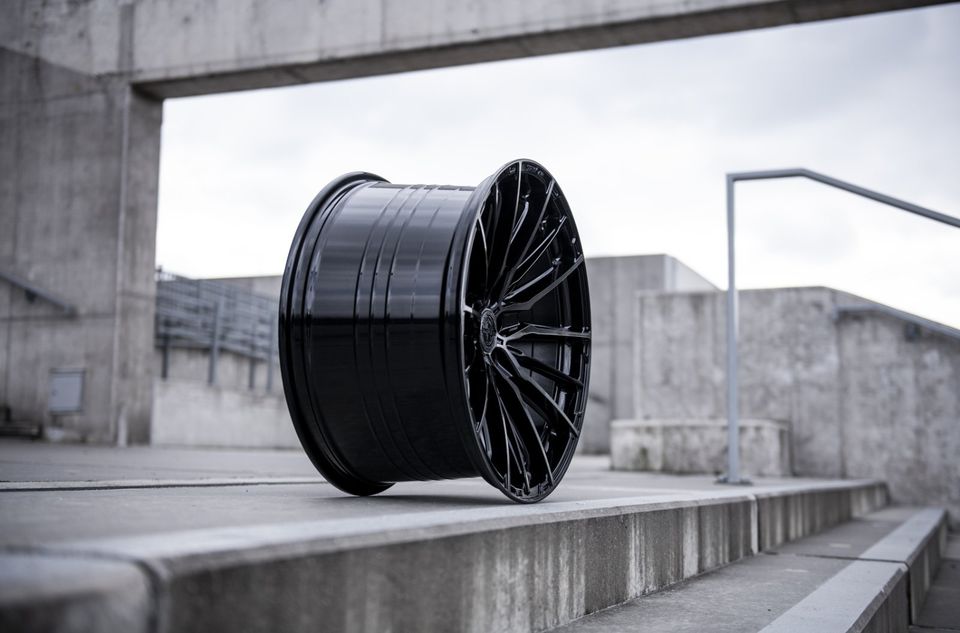

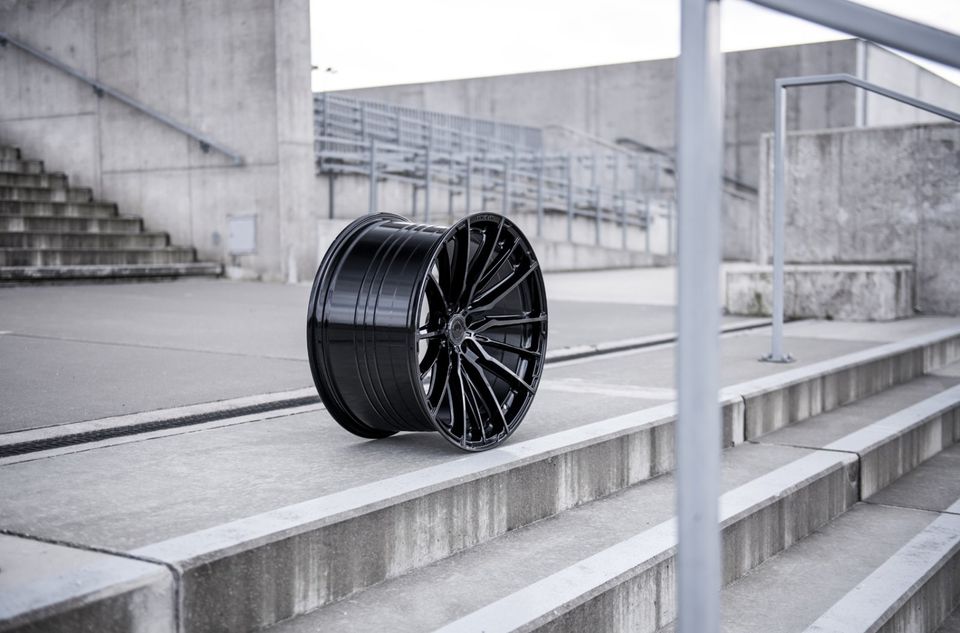

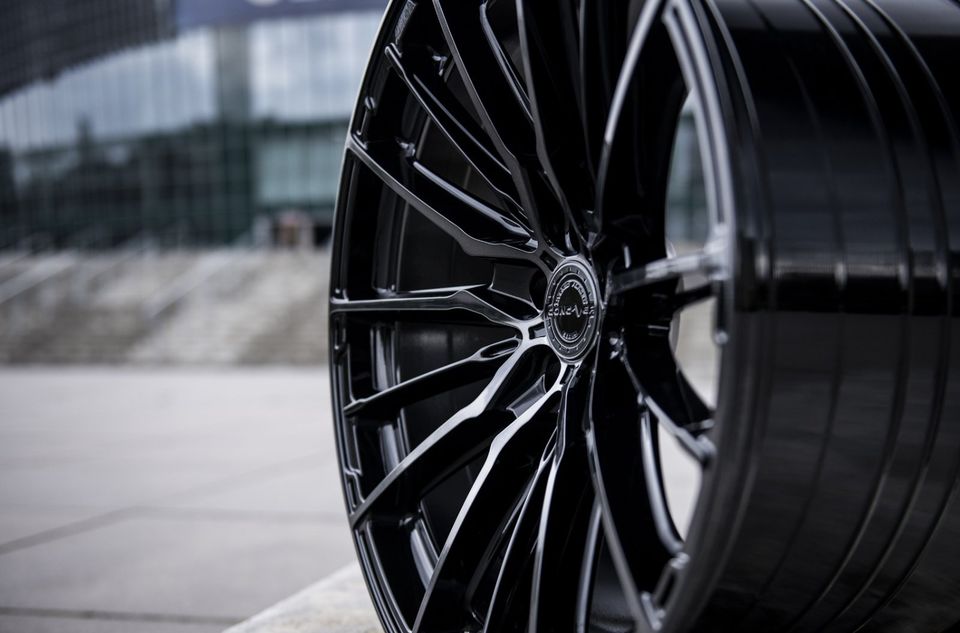

The Concaver CVR7 is the definitive choice for Audi enthusiasts looking to bridge the gap between track-focused engineering and show-stopping aesthetics. Featuring an intricate, layered Y-spoke mesh, this wheel creates a three-dimensional visual effect that shifts as the vehicle moves. Built using Hybrid Forging (Flow-Forming) technology, the CVR7 reduces rotational mass to sharpen the handling of heavy-chassis models like the RS6 and SQ7 while maintaining a massive 815 kg load rating.

Included Components:

• 4x New Concaver CVR7 Alloy Wheels (20-Inch)

• 4x Concaver Luxury Center Caps

• TÜV Certificate / Parts Approval (Teilegutachten)

• Vehicle-specific Hub Spigot Rings (e.g., 66.6mm for B9/C8/4M)

• Note: Requires 60° cone seat bolts (OEM Audi ball seat bolts will not fit).

Specifications:

• Model: Concaver CVR7

• Size: 20-Inch (Widths: 8.5J to 12J available)

• PCD: 5×112 (Standard Audi/VW) | Custom drilling: 5×108 – 5×130

• Manufacturing: Hybrid Forged / Flow-Formed

• Load Rating: 815 kg per wheel (SUV & Heavy Sedan Ready)

• Profile Options: Performance Concave / Mid Concave / Deep Concave / Extreme Concave

• Compatibility: * Audi A4/S4/RS4 (B8, B9, B10)

  • Audi A6/S6/RS6/RS7 (C7, C8, C9)

  • Audi Q5/SQ5/Q7/SQ7 (8R, FY, 4M)

• Standard Finishes: Brushed Titanium, Carbon Graphite, Platinum Black, Double Tinted Black, Brushed Bronze

Features:

• Hybrid Forged Strength: The flow-forming process produces a thinner, stronger barrel with a grain structure comparable to fully forged wheels, ensuring durability against high-speed impacts.

• Architectural 3D Mesh: The overlapping spoke design is specifically crafted to complement the aggressive vents and Matrix LED lighting found on modern Audi RS models.

• Maximized Brake Clearance: The inner barrel is meticulously carved to provide ample space for oversized 6-piston Akebono calipers and Carbon Ceramic rotors.

• Extreme Concave Profiles: Tailored for wide-body setups, allowing for an “Extreme Concave” rear to accentuate the Quattro flares of the RS5 and RS7.

• All-Weather Certification: Finished with a high-resistance multi-layer coating that is “wintergeeignet” (winter-suitable), protecting the alloy from road salt and harsh climates.
