20" Concaver CVR9 Wheels – Audi, BMW, Merc, Porsche, VW

Description

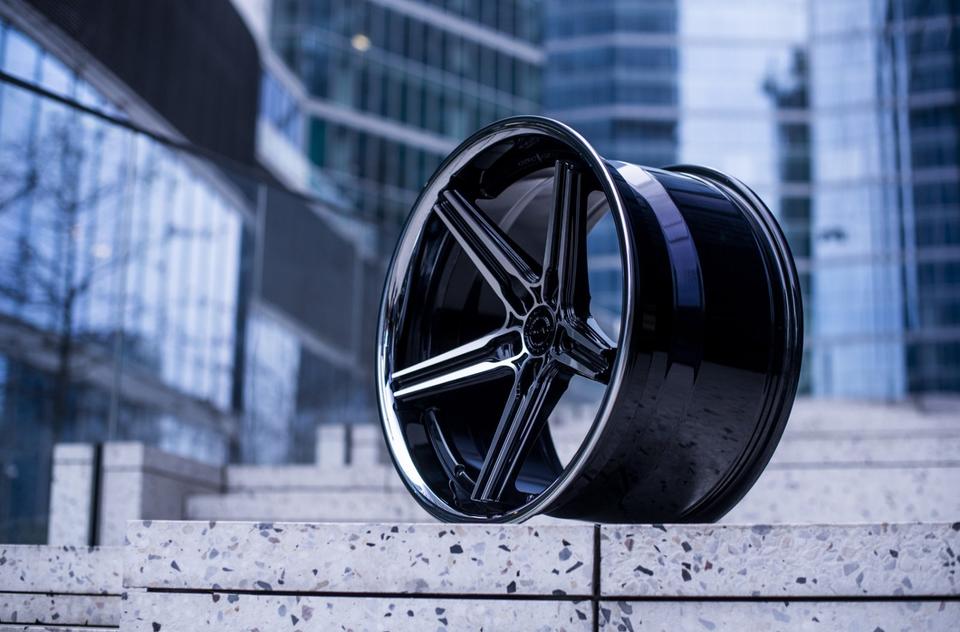

The Concaver CVR9 is a bold reimagining of the classic five-spoke design, characterized by its signature stainless steel-style lip and aggressive concavity. Utilizing advanced Hybrid Forged (Flow-Formed) technology, this wheel offers the lightweight benefits and structural integrity of a forged wheel with the accessibility of a cast one. It is the definitive choice for Audi enthusiasts seeking a deep-dish, motorsport-inspired look that perfectly complements the wide-body silhouettes of the RS and S models.

Included Components:

• 4x New Concaver CVR9 Alloy Wheels (20-Inch)

• 4x Concaver Luxury Center Caps

• TÜV Certificate / Parts Approval (Teilegutachten)

• Vehicle-specific Hub Spigot Rings (e.g., 66.6mm or 57.1mm)

• Note: Requires 60° cone seat bolts (OEM ball seat hardware is not compatible).

Specifications:

• Model: Concaver CVR9

• Size: 20-Inch (Available widths: 8.5J, 9J, 10J, 10.5J, 11J, 12J)

• Manufacturing: Hybrid Forged / Flow-Formed

• Bolt Pattern: 5×112 (Standard Audi/VW/Merc) | Custom PCD available: 5×108 – 5×130

• Offset (ET): Custom ranges (typically ET20 to ET54 depending on width)

• Load Rating: 815 kg to 900 kg per wheel (Heavy-duty rating for SUVs like Q7/SQ8)

• Profile Options: Performance Concave / Mid Concave / Deep Concave / Extreme Concave

• Standard Finishes: Brushed Titanium, Carbon Graphite, Matt Black, Glossy Bronze, Black Diamond Cut

Features:

• Hybrid Forged Precision: The flow-forming process compresses the aluminum barrel to increase grain strength and reduce unsprung weight, enhancing both acceleration and braking performance.

• Modern 5-Spoke Aesthetics: Features a deep-dish rim track that frames a concave five-spoke face, creating a multi-dimensional look that suits everything from the Audi A4 (B9) to the RS6 (C8).

• Maximum Brake Clearance: Specifically engineered with high-pad clearance to accommodate the massive 6-piston calipers and Carbon Ceramic brakes found on Audi’s performance models.

• Extreme Concave Versatility: Available in up to four different face profiles, allowing for a dramatic staggered “Extreme Concave” setup on wide-body vehicles.

• Winter-Certified Protection: The premium multi-layer finish is “winter-ready,” providing superior resistance to road salt and harsh weather conditions for year-round style.
